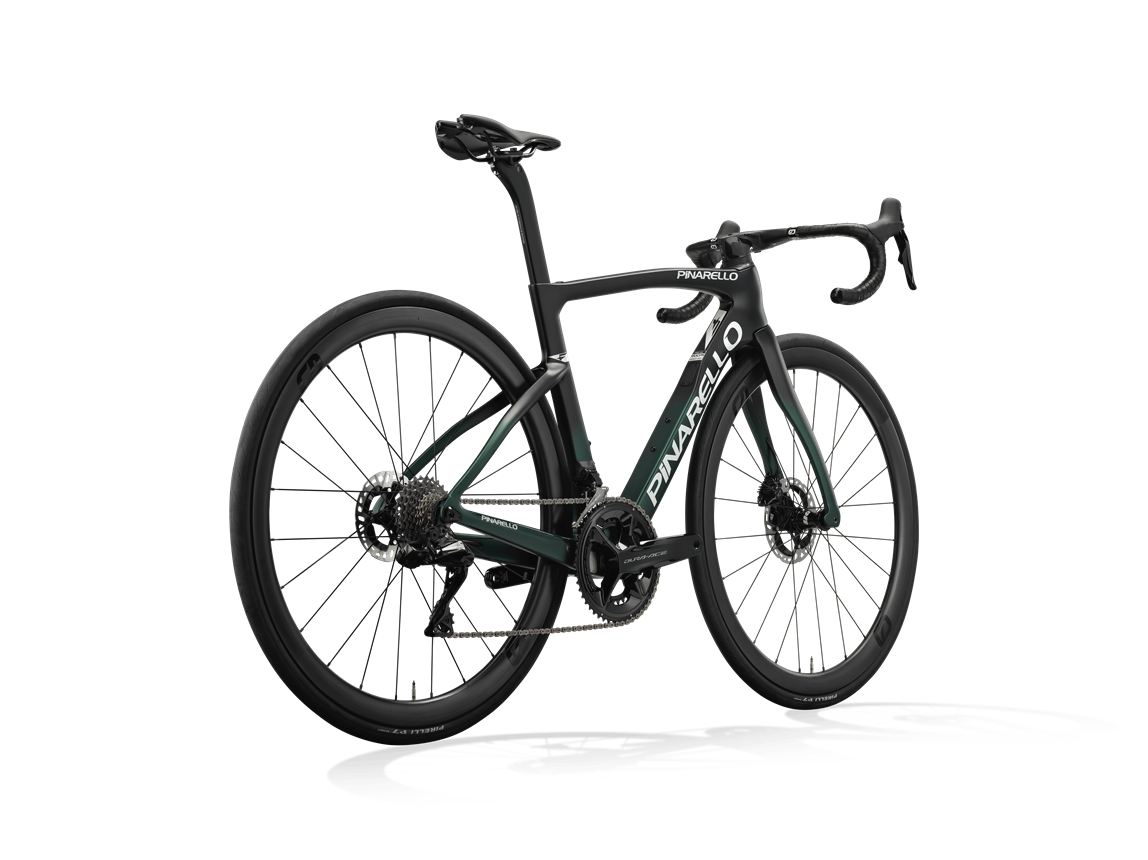

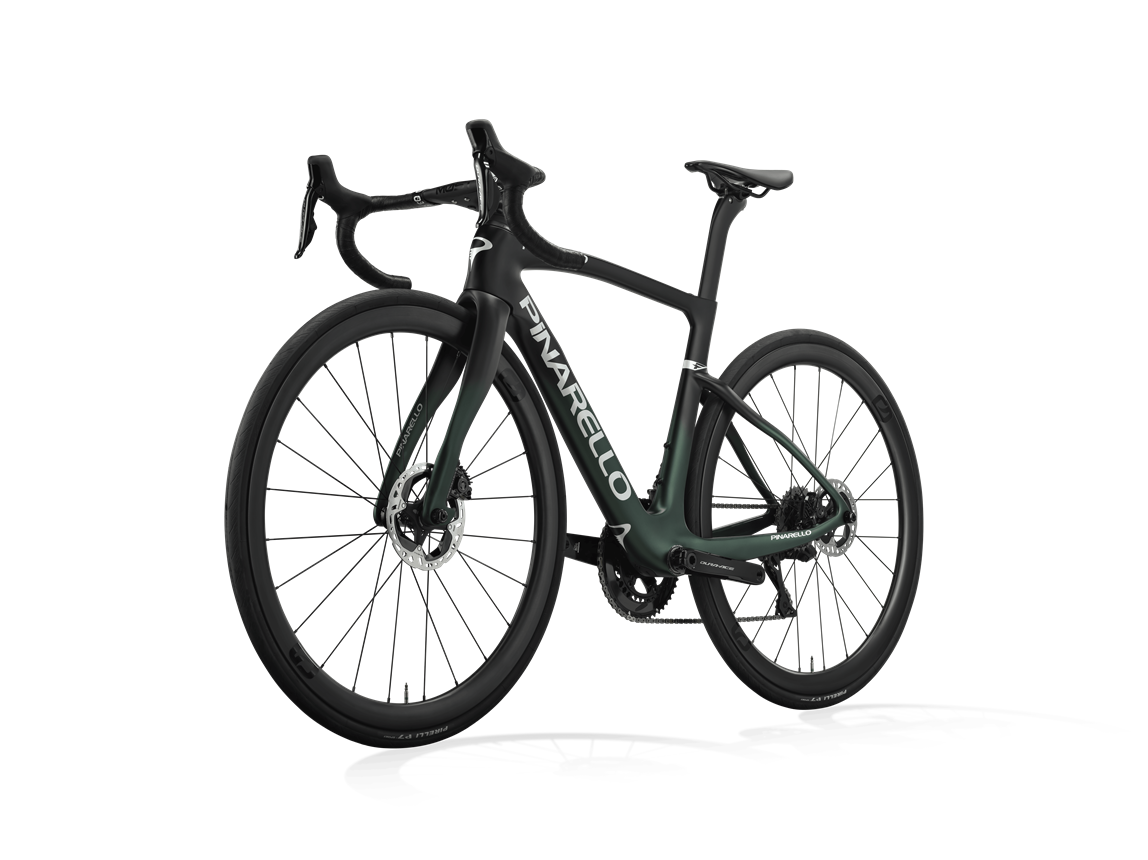

F9 FRAME KIT

The Pinarello F9 has eerily similar geometry and frame characteristics to the Dogma F. Same design language, very similar look and from Pinarello expected dazzling luxury quality. The F9 is Pinarello's flagship F-series road bike product, which is also the unquestionable challenger in its category.

MOST IMPORTANT: WHAT MATERIAL IS IT MADE OF?

Carbon fiber fabrics can be grouped in two ways. We can categorize by tissue density and their types. There are classic crochet fabrics (e.g. 1K, 3K, 12K) and unidirectional fabrics.

The other grouping aspect is whether a carbon fiber fabric has high modulus, strong or high resistance. The former are very rigid and lightweight, the latter are extremely resistant and flexible. A lightweight, rigid and competitive frame cannot be built without the dominant use of the former! Without the latter, however, there is no frame production.

Pinarello works exclusively with TorayCa, Toray's premium fabric division, using fabrics manufactured by them and jointly conceived at all levels.

M40X: The best, most complex and most expensive carbon fabric ever created by man. Its tensile strength is even better than that of the T1100, and its durability and overall quality are unprecedented. So there's nothing better than that, and Pinarello is the default to offer only the best of everything for your bikes. And that's TorayCa, specifically the M40X.

T1100: One of the highest quality carbon fabrics on planet Earth, made exclusively for Pinarello. TorayCa T1100G's 1K weave ultra high modulus carbon fabric is one of the highest quality carbon fiber products in the world. This is complemented by Nanoalloy technology, which uses aluminum microfibers to achieve superhuman drive efficiency and durability.

T900: TorayCa's T900 UD woven carbon fabric represents an unparalleled balance of performance and lightness for all racers. Incredible rigidity and, above all, the reality of performance characterize this product.

T700: The TorayCa T700 UD carbon fabric represents an exceptional balance of performance and comfort for all cyclists. It is characterized by a wonderful combination of excellent stiffness and vibration absorption.

T600: When the TorayCa T600 UD carbon fabric was dreamed up, exceptional comfort was the focus of the design work. It is characterized by an extraordinary ability to absorb vibrations.

TECHNOLOGIES IN BRIEF

T900 UD CARBON: the perfect combination of stiffness and lightness.
ASYMMETRIC FRAME DESIGN: Frames designed according to lines of force.
FLATBACK PROFILE: Pinarello aero-standard according to UCI 3:1 rules.
CONCAVE DOWN TUBE: Pinarello aero-standard.
FORK FLAP: aero plate covering the brake caliper at the lower end of the fork.
TiCR TECHNOLOGY: full cable integration.
ONDA FORK: absorbs vibration and yet is extremely rigid.
TIRE CLEARANCE: maximum 30 mm road tire.

WHY THIS EQUIPMENT?

F9 frameset: The TorayCa T900 UD UHM carbon fabric is one of the most suitable for racing and performance-focused cycling in general. Asymmetric design and amazing luxury in every square millimeter - this is the new Pinarello F9 frameset in a nutshell.
