| BOLIDE F TT FRAME KIT + CARBON BASE BAR |
BOLIDE F TT FRAME KIT + CARBON BASE BAR
world champion carbon frame of time trial bike with disc brakes | *For consumer (B2C) purchases, this product is covered by a 3-year official mandatory warranty. |
5 460 000 Ft
I CHECK IT
The air is thin at the top of the food chain. The solitude is stifling; daily life is ruthless. Much like at the pinnacle of competitive sport—there is no room for error. The Pinarello Bolide F TT is undoubtedly the fastest and most coveted time-trial bike in the world.
It is also the most successful: numerous world championship titles, Olympic gold medals, World Tour stages, and much more have been won in the saddle of the Bolide F TT. In every aspect, this bike is about luxury, supreme pedaling efficiency, and sheer speed.

Pinarello S.R.L. offers a lifetime warranty on its framesets, effective from September 15, 2026. All related information is available HERE!
Carbon fiber fabrics have become virtually dominant in premium bicycle manufacturing today. Several elite manufacturers no longer offer any other raw material for their frames—exclusively carbon. Since the frameset is responsible for roughly 70–80% of a bicycle's value and ride quality, it is crucial to understand what that "carbon" material actually is. Below, we present the background of this technology through the portfolio of Toray—the world's largest and most innovative carbon fiber manufacturer, celebrating its exact 100th anniversary in 2026.
Toray uses PAN-based technology. PAN is the abbreviation for Polyacrylonitrile: a synthetic, organic polymer (a specialized plastic) made from petroleum derivatives, which serves as the raw material for about 90% of the world's carbon fiber production. Carbon fiber cannot be mined directly or drawn into filaments from pure carbon; it requires a carrier material—technically known as a precursor—which is then carbonized (burned back into carbon) in an oxygen-free environment.
PAN (Toray) vs. Pitch (Mitsubishi Chemical)
In laboratories and factories, carbon fiber materials are defined based on three main physical properties:
1. Tensile Strength (How strong is it?)
This indicates how much pulling force a carbon fiber can withstand before breaking. Think of it like a rope: the higher this number, the heavier an object you can hang from it without it snapping.
In the case of M40X: Extremely high, approx. 5.7 GPa. This means that a single square millimeter cross-section of M40X fiber can theoretically withstand more than 550 kilograms of pure pulling force.
2. Modulus (How stiff is it?)
In the case of M40X: Very high, at 377 GPa—meaning this is an extraordinarily stiff, unyielding carbon fiber.
3. Density (How light is it?)
Carbon fibers weigh a quarter as much as steel while being much stronger and stiffer.
The difference in raw weight among various carbon fibers is minimal; the real weight reduction comes from the fact that the higher stiffness and strength of more expensive fabrics allow less material (thinner walls) to be built into the frame.
The industry and Toray classify fibers into four main categories based primarily on their stiffness (Modulus):
| Category Name | Stiffness (Modulus) | Characteristics | Example |
| Standard Modulus (SM) | Lower (~230 GPa) | The most widespread, durable industrial carbon fiber. | TorayCa T300 / T700 |
| Intermediate Modulus (IM) | Medium (~290 GPa) | Excellent balance between raw strength and flexibility. | TorayCa T800 / T1100G |
| High Modulus (HM) | High (~350–450 GPa) | Extremely stiff, terribly expensive, and lightweight. M40X belongs here. | TorayCa M40X |
| Ultra-High Modulus (UHM) | Extra high (>450 GPa) | Astronomically priced, very brittle fibers used in aerospace. | TorayCa M60J / M60JB |
Toray divides its premium fibers into two traditional families, plus a new-generation hybrid series. The meaning of the letters is logical: T = Tensile Strength, M = Modulus (Stiffness).
1. The "T" Family: The Workhorses (High Strength)
Designed to withstand the greatest possible pulling force without breaking. They are more flexible and offer superior resistance to sudden, dynamic impacts. The higher the number, the stronger the fiber.
2. The "M" Family: The Stiff Ones (High Modulus)
Structural stability and zero flex are the primary considerations here. The two-digit number indicates stiffness in Gigapascals (e.g., an M40 fiber is approx. 400 GPa).
3. The New Era: The "X" Family (MX Series)
Due to the laws of physics, stiffness and strength were previously enemies of one another. Toray broke through this barrier with the M40X. The "X" stands for this revolutionary crossover: it retains the brutal stiffness of the M-family while gaining the astonishing tensile strength of the T-family.
Summary Table for Easier Overview:
| Family | Main Characteristic | What It Gives the Product? | Typical Applications |
| T-Series (e.g., T700, T1100G) | High strength | Resists breakage, withstands impacts and heavy loads. | Aircraft fuselages, bicycle impact zones, everyday sports equipment. |
| M/MJ-Series (e.g., M40J, M55J) | High stiffness | Does not bend, prevents frame deformation, transfers energy instantly. | Premium bicycles, golf club shafts, satellites, spacecraft. |
| X-Series (e.g., M40X) | Maximum strength + Maximum stiffness | Enables an extremely lightweight structure that is simultaneously rigid and unbreakable. | Luxury bicycle frames, high-end tennis rackets, aerospace industry. |
At the factory, microscopic filaments are gathered into bundles called "tows." The letter "K" stands for kilo (thousand) and indicates how many thousand elementary filaments make up a single tow:
In modern bicycle manufacturing, K-designations are mostly cosmetic and apply only to the outermost, visible protective layer.
What is UD (Uni-Directional)?
Compatibility Limitations
Torayca M40X is the absolute pinnacle of cycling, yet it is rarely encountered. Currently, it is openly seen almost exclusively on Pinarello's elite models (Dogma F, Dogma X, Bolide F TT, Dogma GR). There are strict economic and political reasons for this:
Because Torayca M40X is astronomically expensive (and its processing also requires custom resins, 15–24 hours of hand labor, and rigorous quality control), most manufacturers prefer to blend more economical yet still capable fibers (such as a mix of T800 and M40J) so the frame price does not cross a certain psychological threshold. Currently, almost only the best and most demanding prestige manufacturers can afford to buy and integrate M40X into their multi-million-forint flagship models.
How can they still make lightweight frames from cheaper materials? The answer is simple: they use less material, and durability is not really a priority. On some mass-market manufacturers' 600-something-gram road frames, the wall thickness in certain spots is as thin as a soda can—and that is without even mentioning "fiberglassing," which is unfortunately treated as a completely accepted practice by many.
All in all: Finite Element Analysis is an old invention, yet the laws of physics can be very cruel.
How does Nanoalloy® work?
During Toray's chemical breakthrough, nanometer-sized elastic rubber particles are dispersed with complete uniformity into the hard epoxy resin.
[Impact strikes the frame]
│
▼
[Force reaches the super-stiff M40X fibers]
│
▼
[Fibers transfer the stress to the resin]
│
▼
[Nanoalloy® rubber particles absorb and dissipate the energy]
│
▼
[Result: The resin does not crack, the fibers stay in place, and the frame remains completely INTACT]
The microscopic particles in the resin act like millions of tiny shock absorbers inside the frame.
1. HUS-MOD (High Ultra Stiffness Modulus) – The Absolute Pinnacle
2. NHU-MOD (Normal High Ultra Modulus) – The Premium Golden Middle GroundNHU-MOD is the raw material for Wilier's upper-mid-range SL (Superlight) or specialized adventure models.
3. NH-MOD (Normal High Modulus) – The Indestructible Workhorse
Overall, Toray sells M40X fiber and Nanoalloy® resin almost exclusively together in the form of pre-impregnated (prepreg) sheets because the two components depend on one another. M40X gives the frame its unyielding, rock-hard character, while Nanoalloy® resin provides the internal protective web and compressive strength that shields this wonder fiber from potential damage.
This is why no cheaper Far Eastern contract manufacturer is able to replicate this standard—and it also explains why "premium" frames from Chinese manufacturers cost exactly what they do.
TORAYCA M40X 1K HYPER HIGH MODULUS CARBON: the world's most expensive and exclusive carbon fabric.
ASYMMETRIC FRAME DESIGN: Frame geometry engineered based on lines of force.
AIRFOIL SECTIONS: The UCI has abolished the 3:1 rule; research showed that aspect ratios of 6:1—or even 8:1—performed significantly better than the original 3:1 benchmark.
AIRSTREAM TECHNOLOGY: Inspired by the tubercles found on humpback whale fins, a unique "AeroNode" pattern has been created on the seatpost and seat tube. This solution aims to reduce complex vortices generated by the rider's leg movement, thereby improving airflow.
CONCAVE DOWN TUBE: A Pinarello aero patent. The recessed down tube is proven to reduce aerodynamic drag.
FORK FLAP: An aero fairing covering the brake caliper at the lower end of the fork.
TiCR TECHNOLOGY: Full cable integration.

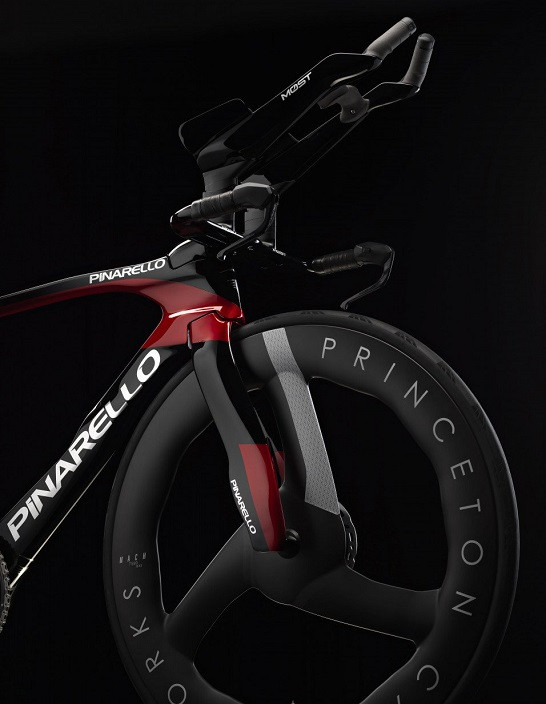

ONDA FORK: An exceptionally stiff fork that nonetheless absorbs vibration. It is also an integral part of Pinarello's design identity.
TIRE CLEARANCE: Accommodates road tires up to 32 mm wide.
Pinarello is the embodiment of victory and success. Its track record of success surpasses the combined achievements of its competitors: 30 Grand Tour victories have been secured on the brand—including 15 Tour de France titles. A significant number of Hour Records—including the current one—are held by Pinarello. The brand boasts 48 track cycling world titles, 14 time-trial world championships, and countless World, European, and Olympic victories across road cycling, cyclocross, XCO, and Ironman events.
Today, they are the only bicycle manufacturer in the world that develops every single component for its bikes in-house—under the "MOST" brand. They work exclusively with the Japanese company TorayCa, which produces specific fabrics and composites tailored specifically for Pinarello. Market-leading engineering, a unique corporate culture, and an all-consuming passion have created the most legendary icon in cycling.

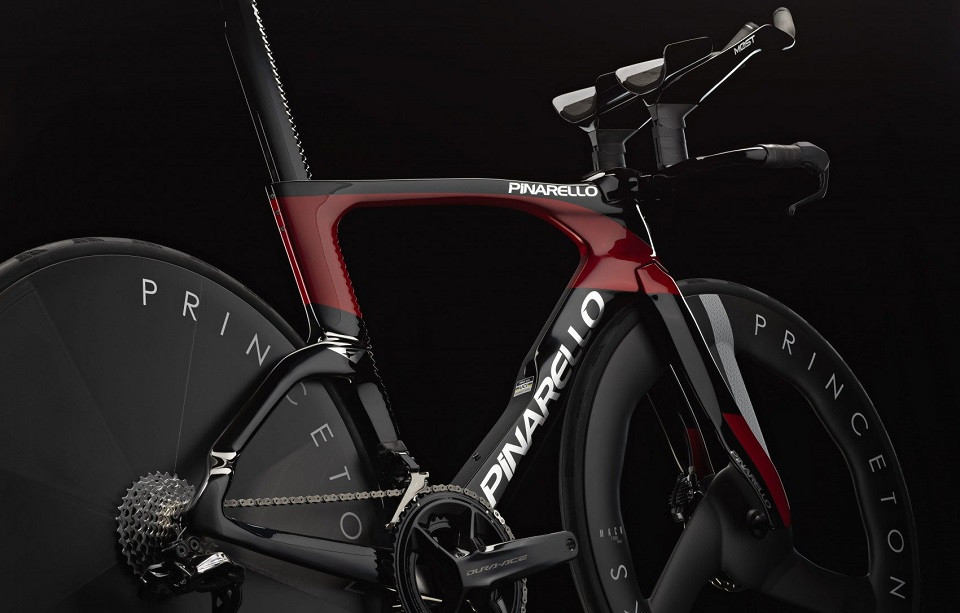

The Pinarello Bolide F TT is a luxury time-trial bike featuring a carbon frame and disc brakes, developed by Pinarello engineers exclusively for elite-level racing. It boasts a TorayCa M40X 1K Hyper High Modulus Carbon frameset, an asymmetric frame design, Bolide time-trial race geometry available in four sizes, an Onda fork, a concave down tube, TiCR Technology, Fork Flap, Airfoil Sections, Airstream Technology, an integrated seat post clamp, and a highly durable Italian-threaded bottom bracket.
For the Bolide F TT, the manufacturer utilizes the highest-quality carbon fabric on the planet—produced specifically for Pinarello. TorayCa M40X 1K Hyper High Modulus Carbon is the world's highest-quality and most expensive carbon fiber product; TorayCa even tracks exactly how much of it is used annually. Its stiffness, durability, and contribution to drivetrain efficiency are unparalleled.
WHAT IS THE MISSION OF THE PINARELLO BOLIDE F TT? The Bolide F TT embodies everything Pinarello stands for regarding pure, uncompromising speed. It is an ethereal convergence of success, boundless ambition, and artistic freedom. The mission of the Bolide F is expressed through the pursuit of overwhelming speed and the constant reiteration of that quest.
WHO CHOOSES THE BOLIDE F TT? It is the choice of the time-trialist who knows no limits—someone who settles for nothing less than the absolute maximum and is proud to put their name to it. It is for those who understand that the Bolide F represents not merely exclusivity and prestige, but also a solid cultural benchmark and a statement of values. The Bolide F TT embodies the unyielding ambition to be invincible.
